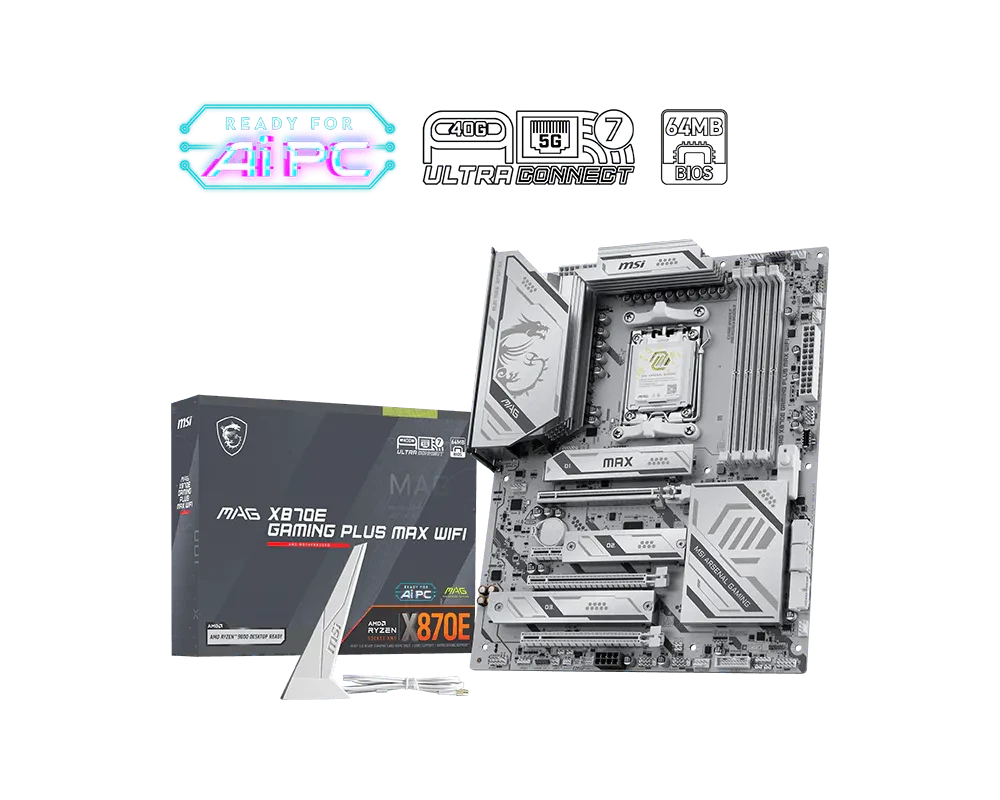

לוח אם MSI MAG X870E GAMING PLUS MAX WIFI
לוח אם MSI MAG X870E GAMING PLUS MAX WIFI. בתצורת atx, לתושבת AM5, עם ערכת שבבים AMD X870. זמינות במלאי הספק אמטל.
מק"ט: 4711377406727
נותרו עוד1
מחיר: ₪1,425.09
למה לקוחות קונים אצלנו:
>> זמני אספקה מהירים מאוד
>> אחריות יבואן רשמי
>> קנייה מאובטחת ושירות לקוחות מעולה!
קנייה מאובטחת
משלוחים מהירים
אלופים בתחום
לוח אם MSI MAG X870E GAMING PLUS MAX WIFI
לוח אם MSI MAG X870E GAMING PLUS MAX WIFI. בתצורת atx, לתושבת AM5, עם ערכת שבבים AMD X870. זמינות במלאי הספק אמטל.
מפרט טכני
| ערכת שבבים | AMD X870E |
|---|---|
| תמיכה במעבדים | Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop ProcessorsSocket AM5 |
| יציאות תצוגה | 1x HDMI™Support HDMI™ 2.1 TMDS, maximum resolution of 4K 60Hz**1x Type-C DisplayPortUSB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K 120Hz***Available only on processors featuring integrated graphics **Graphics specifications may vary depending on the CPU installed |
| חריצי הרחבה | 3x PCI-E x16 slot1x PCI-E x1 slotPCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot • Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) • Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) • Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) |
| אודיו | Realtek® ALC8977.1-Channel High Definition Audio |
| חיבורי אחסון | 3x M.2M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 22110/2280 devices 4x SATA 6G M.2_1 slot (From CPU) • Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) • Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) M.2_3 slot (From CPU) • Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 8700/ 8600/ 8400/ 7000 Series processors) |
| תמיכה ב-RAID | •Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices •Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices *RAID 5 configuration is only supported by Ryzen™ 9000 series processors. |
| חיבורי USB | 4x USB 2.0 (Rear)6x USB 2.0 (Front)2x USB 5Gbps Type A (Rear)4x USB 5Gbps Type A (Front)2x USB 10Gbps Type A (Rear)1x USB 10Gbps Type C (Front)1x USB 20Gbps Type C (Rear)1x USB 40Gbps Type C (Rear) |
| רשת קווית | 1x Realtek® 8126 5G LAN |
| Internal IO | 1x Power Connector(ATX_PWR)2x Power Connector(CPU_PWR)1x Power Connector(PCIE_PWR 8pin)1x CPU Fan1x Combo Fan (Pump_Sys Fan)6x System Fan1x EZ Conn-header (JAF_1)2x Front Panel (JFP)1x Chassis Intrusion (JCI)1x Front Audio (JAUD)1x Tuning Controller connector(JDASH)3x Addressable V2 RGB LED connector (JARGB_V2)1x RGB LED connector(JRGB)1x TPM pin header(Support TPM 2.0)2x Direct OC Jumper (JBCLK)6x USB 2.0 ports4x USB 5Gbps Type A ports1x USB 10Gbps Type C ports |
| תקשורת אלחוטית | Wi-Fi 7The Wireless module is pre-installed in the M.2 (Key-E) slot Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps Supports 802.11 a/ b/ g/ n/ ac/ ax/ beSupports Bluetooth® 5.4**, MLO, 4KQAM* 6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2. ** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor’s website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2. |
| LED FEATURE | 4x EZ Debug LED 1x EZ Memory Detection LED |
| BACK PANEL PORTS | Clear CMOS Button USB 5Gbps Type-A USB 2.0 5G LAN Wi-Fi / Bluetooth Audio connectors Flash BIOS Button HDMI™ USB 40Gbps Type-C USB 10Gbps Type-A USB 20Gbps Type-C USB 5Gbps Type-A |
| מערכות הפעלה נתמכות | Support for Windows® 11 64-bit |
| מידע על הלוח | ATX243.84mmx304.8mm |
| תצורה | atx |
| מעבדים נתמכים | Ryzen™ 9000 / 8000 / 7000 |
| תושבת מעבד | AM5 |
זמינות במלאי הספק אמטל.
