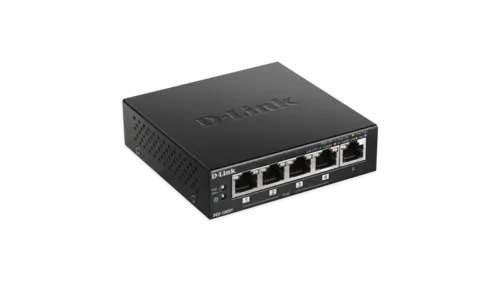

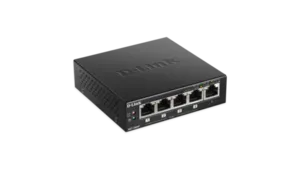

5-Port Gigabit Switch with 4 PoE Ports
DGS-1005P
The D-Link DGS-1005P 5-Port Gigabit Switch with 4 PoE Ports enables you to connect Power
over Ethernet (PoE) devices such as wireless access points (APs), IP cameras, and IP phones to
the network. Built with home and small business users in mind, the DGS-1005P is compact and
operates silently, making it ideal for most rooms and offices.
Power over Ethernet
The DGS-1005P features four 10/100/1000BASE-T ports that support the IEEE 802.3af and IEEE 802.3at PoE protocols, supplying up to 30 W on each PoE port and providing a total power budget of 60 W.
You can connect compatible devices to the DGS-1005P without using an
additional power supply. This allows you to save on cabling and to install devices in locations without immediate access to power outlets.
PoE Power Budget
A large 60 W PoE power budget and up to 30 W per port for simultaneously powering multiple
PoE-compatible devices
Plug-and-play
Plug-and-play installation means the switch can be quickly and easily installed without the need
for any additional configuration
High Performance
The DGS-1005P features plug-and-play installation and requires no configuration.
Automatic MDI/MDI-X support on all ports removes the need for crossover cables when connecting to
another switch or hub, and auto-negotiation on each port intelligently adjusts the port speed for compatibility with the connected device. With wire-speed filtering and store-and-forward switching, the DGS-1005P maximizes network performance while minimizing the transmission of bad network packets.
Features
High-Speed Networking
Five 10/100/1000 Mbps Gigabit Ethernet ports
Full/half-duplex for Ethernet/Fast Ethernet and
full-duplex for Gigabit Ethernet speeds
